WARN VR EVO 12-S vs BADLAND APEX 12K: Which Winch Fits Your Overlanding Build?

A 12,000 lb synthetic-rope winch is a common target for full-size trucks, heavier SUVs, and overlanding builds that need meaningful self-recovery capability without moving into commercial-grade hardware. Two names that come up quickly are the WARN VR EVO 12-S and the BADLAND APEX 12,000 lb Synthetic Rope Winch.

On paper, they look surprisingly similar. Both are 12-volt electric winches rated for 12,000 lb line pull, both use 3/8-inch synthetic rope, both include hawse fairleads, both support wired and wireless control, and both allow more flexible control-pack placement. The real difference is what each product gives you around those headline numbers.

We have not personally load-tested these two winches side by side. This comparison is based on current manufacturer specifications, published warranty information, product documentation, current retail positioning, and how the features translate to different overlanding and recovery use cases.

The All Guy rule: do not buy a winch from the line-pull number alone. Mounting, electrical demand, rope length, weather sealing, service support, and how often you actually recover matter just as much.

As an Amazon Associate I earn from qualifying purchases. Some links below are affiliate links. Manufacturer-direct links are used where appropriate.

If you are building the rest of the recovery system, start with our Best Overlanding Recovery Gear in 2026, then pair your winch with properly matched soft shackles and kinetic recovery ropes for the situations where dynamic recovery makes more sense.

Quick Comparison: WARN VR EVO 12-S vs BADLAND APEX 12K

The Core Difference: Premium Support vs Value

The simplest way to understand this comparison is that the WARN asks you to pay considerably more for a winch backed by WARN's established service ecosystem, published long-term warranty coverage, a 90-foot synthetic line, and the company's standard-duty VR EVO platform. The BADLAND APEX gives you many of the same functional features for much less money, including synthetic rope, wireless control, strong environmental sealing, and a removable control pack.

That does not automatically make either one the better purchase. A winch on a weekend trail truck that may be used a few times a year has a very different job from a winch on a remote-travel rig where recovery equipment is expected to work after years of weather exposure, vibration, mud, and repeated pulls.

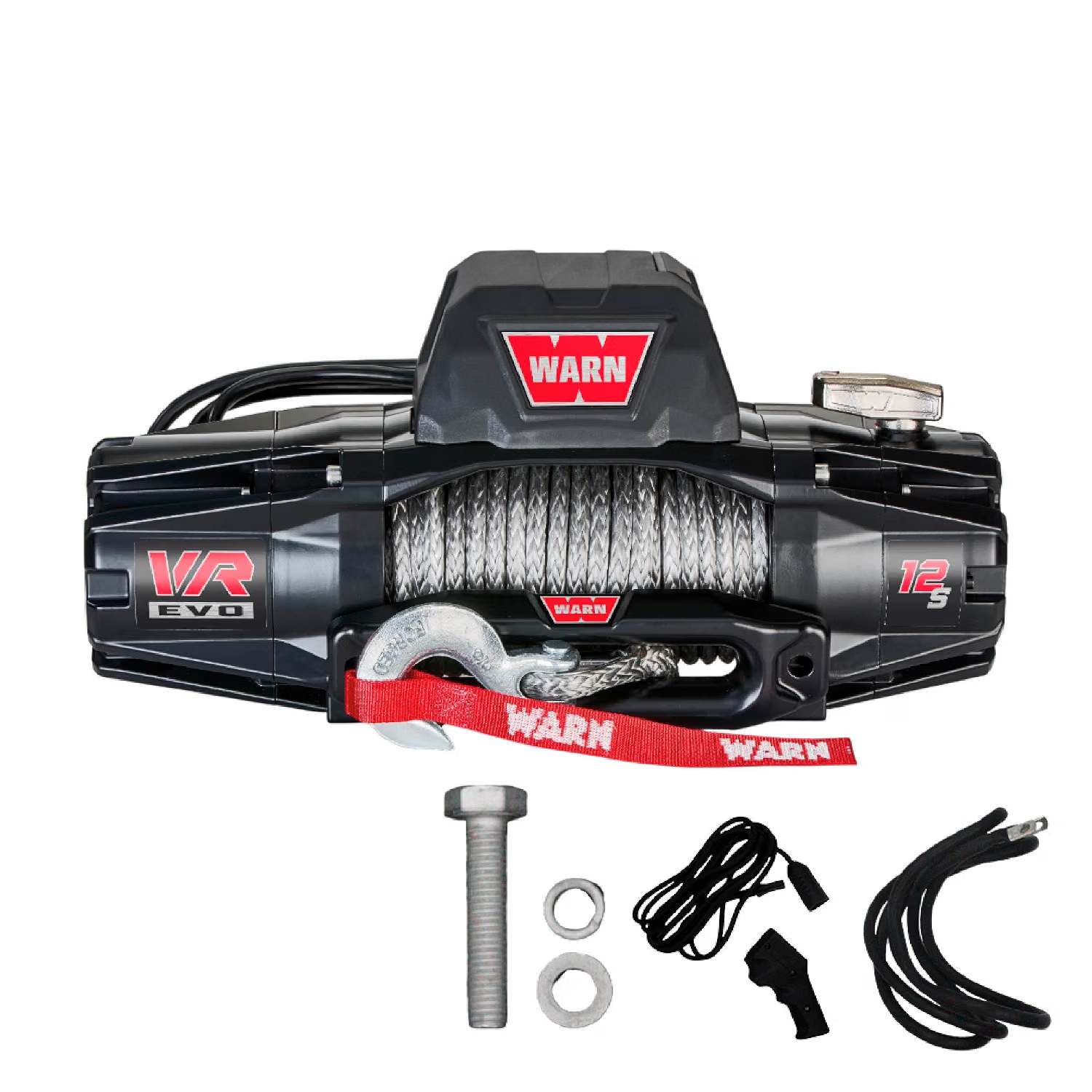

WARN VR EVO 12-S: What You Are Paying For

Check Price on Amazon

The WARN VR EVO 12-S, part number 103255, is rated for 12,000 lb line pull and carries 90 feet of 3/8-inch synthetic rope through a hawse fairlead. WARN uses a 12-volt series-wound motor, three-stage planetary gearing with a 234:1 ratio, a sealed Albright contactor, and a control pack that can be relocated for low-profile installations.

WARN specifically positions the VR EVO 12-S for larger, heavier rigs, including 3/4-ton and one-ton pickups. The product is IP68 rated and includes a two-in-one remote that can be used in wired or wireless mode.

The strongest argument for the WARN is the ownership package around the hardware. WARN publishes a limited lifetime mechanical warranty and a seven-year electrical warranty for the VR EVO line. That matters more if the winch is going to live on the front of the vehicle for years rather than sit protected in a garage most of its life.

Best fit: an overlander who values longer published warranty coverage, established parts and service support, 90 feet of synthetic line, and a known winch platform enough to justify the higher upfront cost.

BADLAND APEX 12K: Why the Value Proposition Is So Strong

View at Harbor Freight

The BADLAND APEX 12,000 lb Synthetic Rope Winch, SKU 56385, also uses a 12-volt series-wound motor and is rated for 12,000 lb line pull. It carries 80 feet of 3/8-inch synthetic rope, uses an aluminum hawse fairlead, includes a forged alloy hook, and comes with both wireless and wired control options.

Harbor Freight lists IP68/IP69K protection, including a dual-stage drum seal intended to help keep mud, sand, and water away from critical components. The control pack is removable and relocation cables are included, which is useful for bumpers where height and grille clearance are limited.

The attraction is obvious when you compare current listed prices. At the time of writing, Harbor Freight lists the synthetic-rope APEX at $599.99 while WARN lists the VR EVO 12-S at $1,069.99. Retail prices and promotions change, so treat those as a snapshot rather than a permanent difference.

Best fit: a truck or SUV owner who wants a feature-rich 12K synthetic-rope winch and would rather put several hundred dollars of the build budget toward recovery boards, shackles, air equipment, armor, lighting, or other overlanding gear.

Rope Length: 90 Feet vs 80 Feet

WARN gives you 90 feet of synthetic line while the BADLAND includes 80 feet. More line can be useful when the nearest anchor is farther away, but line length is not automatically an advantage in every recovery.

Winches generally pull hardest on the lower wraps of the drum. In real recovery planning, a proper winch extension, tree saver, recovery ring, and correctly rated connectors can matter more than carrying another 10 feet on the drum. The WARN still gives you more reach out of the box, while the BADLAND leaves a little less synthetic rope to manage and inspect.

Weather Protection and Overlanding Exposure

A winch mounted behind a bumper is exposed even when you are not using it. Water crossings, road salt, dust, pressure washing, snow, mud, and months of temperature cycles all become part of the ownership experience.

WARN publishes an IP68 rating for the VR EVO 12-S. Harbor Freight publishes IP68/IP69K for the APEX and specifically calls out protection against dust, water, and high-pressure water exposure. Those ratings are meaningful specifications, but they do not remove the need for inspection, electrical maintenance, rope care, and periodic operation of the winch.

Remote Controls and a Safety Note for WARN Owners

Both winches give you the flexibility of wired and wireless operation. That is useful on the trail because wireless control can improve positioning and visibility while a wired option gives you a direct backup.

WARN previously recalled certain handheld remotes shipped with VR EVO winches manufactured from June 3, 2019 through November 29, 2022 because water exposure could create unintended operation. WARN states that the recall applies to the remote, not the winch itself. WARN also maintains a current recalls and safety notifications page, including a separate 2026 wireless remote recall notice. If you own or buy used WARN equipment, verify the specific remote and serial information directly with WARN before relying on wireless operation.

Installation and Control-Pack Flexibility

Both products are attractive for modern hidden-winch and low-profile bumper installations because their control packs can be moved. That can make the difference between a clean installation and one that interferes with a grille, front camera, bumper opening, or other hardware.

Before ordering either winch, verify the bumper's winch tray dimensions, mounting pattern, fairlead opening, electrical routing, battery capacity, and access to the clutch. A 12,000 lb rating does not guarantee physical fit in every 12K-compatible bumper.

Which One Fits Different Types of Builds?

• Long-distance overlanding rig: the WARN makes sense for buyers who put a premium on published long-term warranty support, serviceability, and established brand infrastructure.

• Weekend trail truck: the BADLAND APEX can be compelling when you want 12K capacity and modern features without spending four figures on the winch alone.

• Budget-conscious full build: the BADLAND leaves more money available for the rest of the recovery system, which can be the smarter allocation if you still need rated recovery points, shackles, rope, traction boards, compressor, and tire equipment.

• Owner prioritizing warranty and parts support: the WARN's limited lifetime mechanical and seven-year electrical coverage is a major part of what the higher purchase price buys.

Do You Actually Need a 12,000 lb Winch?

Winch sizing should start with the actual loaded vehicle, not the brochure curb weight. Bumpers, armor, passengers, rooftop tents, tools, water, fuel, drawers, camping gear, and trailers can add substantial weight to an overlanding build.

A commonly used starting point is to choose a winch with rated line pull around 1.5 times the vehicle's gross weight, then consider the actual recovery environment and manufacturer guidance. That makes 12K winches a natural fit for many heavier trucks and SUVs, but it does not mean every midsize build needs one.

What Else Should Be in the Winch Kit?

The winch is only one part of the recovery system. At minimum, think about rated vehicle recovery points, properly sized soft shackles, a tree saver or anchor strap, recovery ring or pulley where appropriate, gloves, a line damper when required by your procedures, and a way to extend the line safely.

For the broader setup, see our Best Soft Shackles for Overlanding in 2026, Best Recovery Boards for Overlanding in 2026, and Best Portable Air Compressors for Overlanding in 2026.

Frequently Asked Questions

Is the WARN VR EVO 12-S stronger than the BADLAND APEX 12K?

Both are rated for 12,000 lb line pull, so the headline capacity is the same. Their differences are in rope length, gearing, sealing specifications, warranty, components, support, and purchase price rather than a higher advertised pull rating.

Does the BADLAND APEX include synthetic rope?

The SKU 56385 version compared here includes 80 feet of 3/8-inch synthetic rope and an aluminum hawse fairlead. Harbor Freight also sells other APEX configurations, so verify the exact SKU before buying.

Does the WARN VR EVO 12-S have wireless control?

Yes. WARN lists a two-in-one remote with wired and wireless operation. Owners of older or used units should also check WARN's recall information for affected VR EVO remotes.

Is the extra 10 feet of WARN rope important?

It can be useful for reaching a farther anchor, but recovery technique matters more than the number by itself. Carrying properly rated extension and rigging equipment is still important with either winch.

Which winch is better for overlanding?

That depends on the build. The WARN is easier to justify when long-term warranty coverage, service support, and the established WARN ecosystem matter most. The BADLAND APEX makes a strong case when budget efficiency and a high feature count are the priorities.

Final Thoughts

The WARN VR EVO 12-S and BADLAND APEX 12K arrive at the same 12,000 lb recovery category from two different value propositions. WARN charges more and backs the VR EVO with longer published warranty coverage, established service support, and 90 feet of synthetic line. BADLAND delivers a very similar core feature set, including synthetic rope, wired and wireless controls, relocatable electronics, and strong environmental sealing, at a substantially lower current retail price.

For an overlanding build, the smarter decision is to look beyond the winch itself. If spending less on the winch lets you finish the recovery system correctly, the APEX can make a lot of sense. If the rig travels far from home and you place more value on published long-term warranty coverage and the WARN support ecosystem, the VR EVO 12-S may justify the premium.
